Re-Usable Adjustable Concrete Shuttering Formwork Brackets with Pin

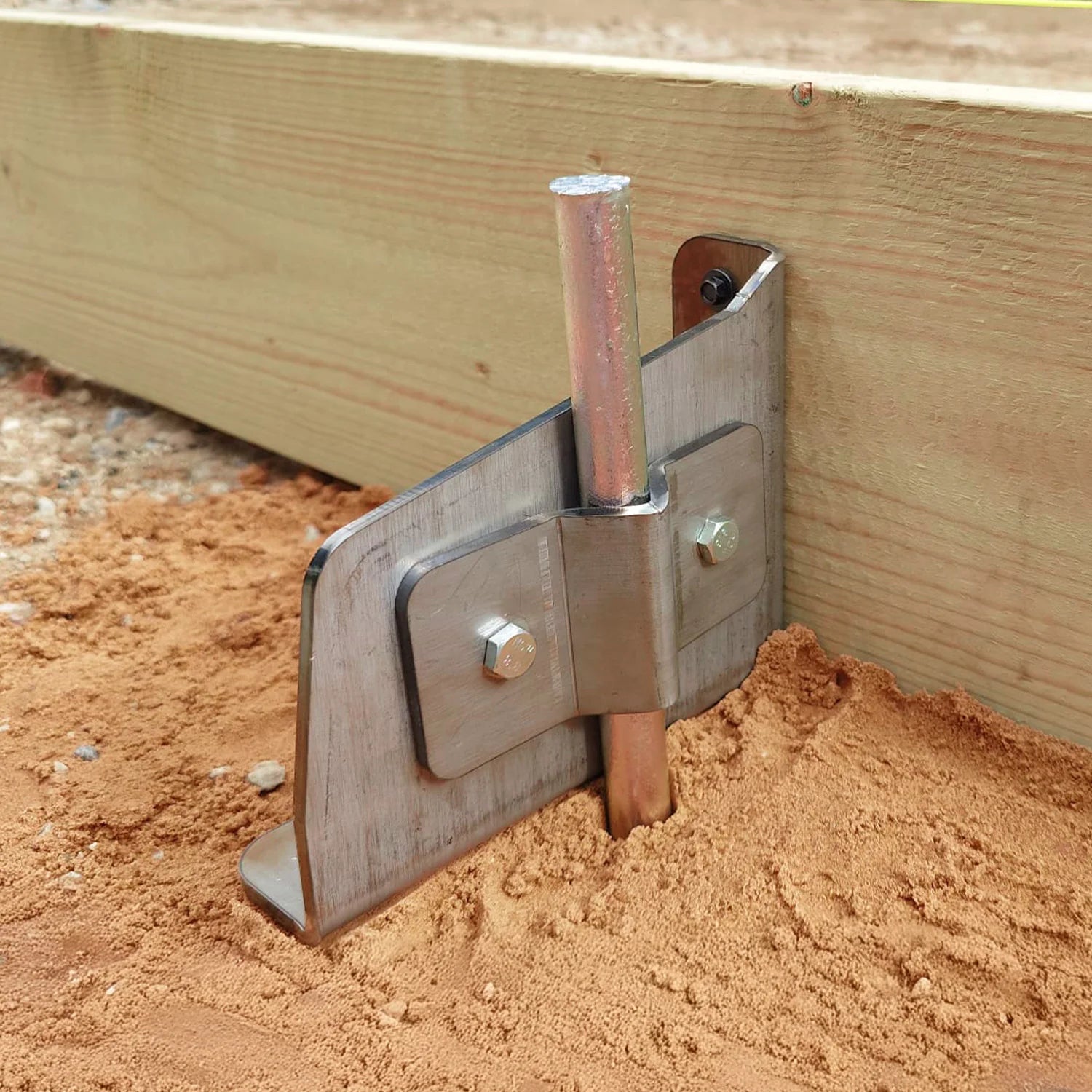

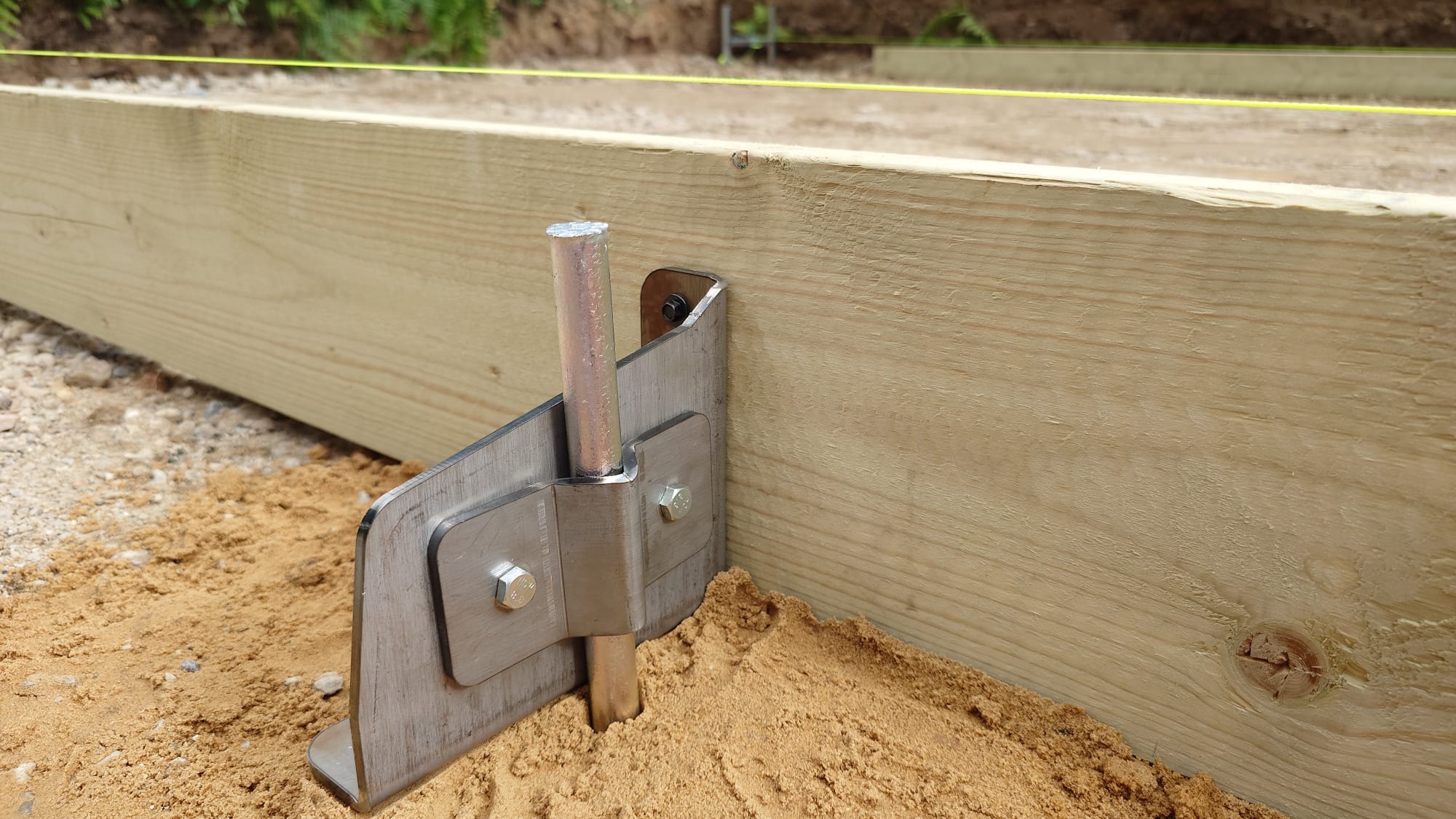

Build clean, accurate shuttering for concrete bases with these fully-reusable, Adjustable Concrete Formwork Brackets. Designed to hold timber securely, even when pins go in off-angle, they help reduce errors and speed up your setup. Each bracket includes a 3-part design, a galvanised 20mm pin, and all the fixings needed to lock your formwork boards in place.
What can it be used for?

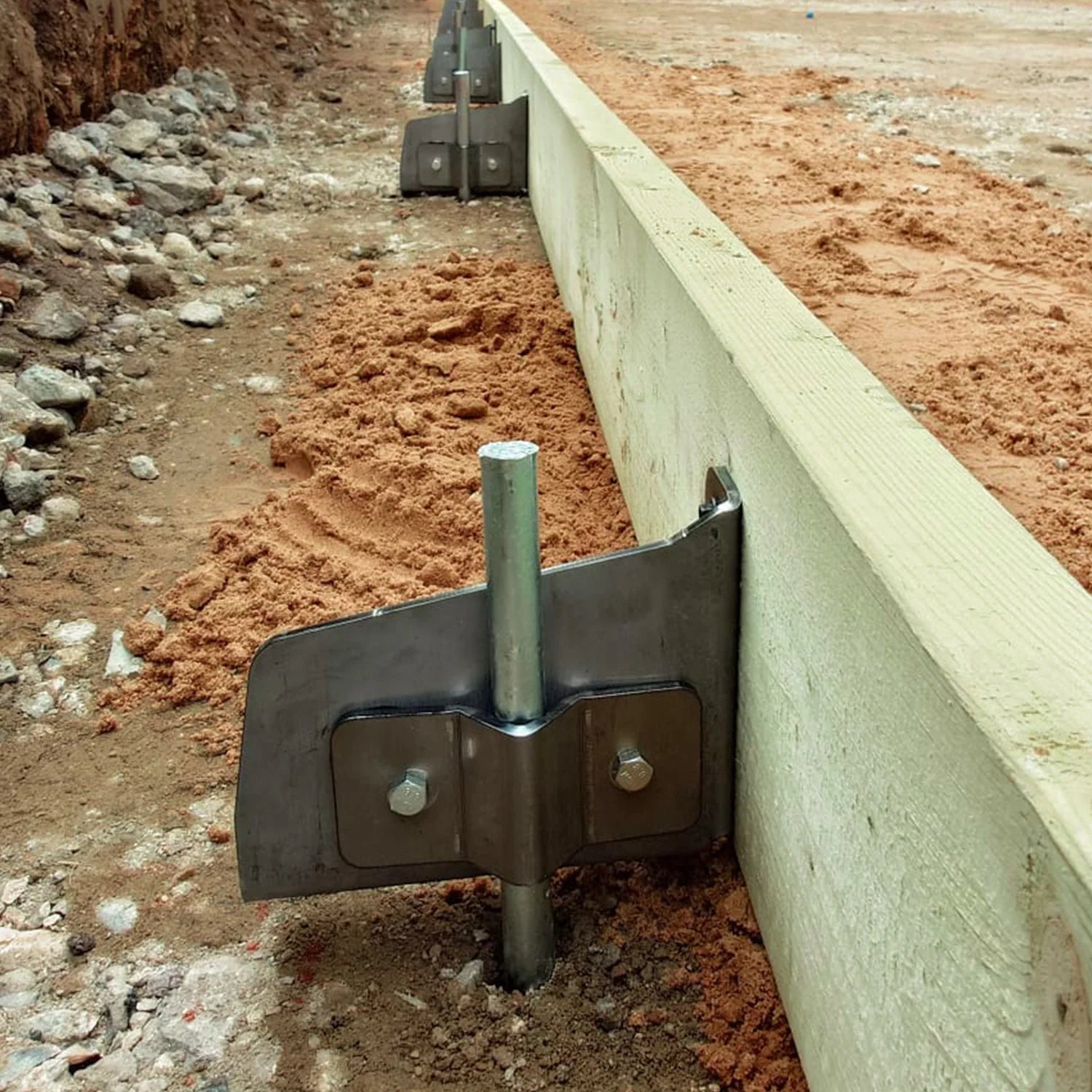

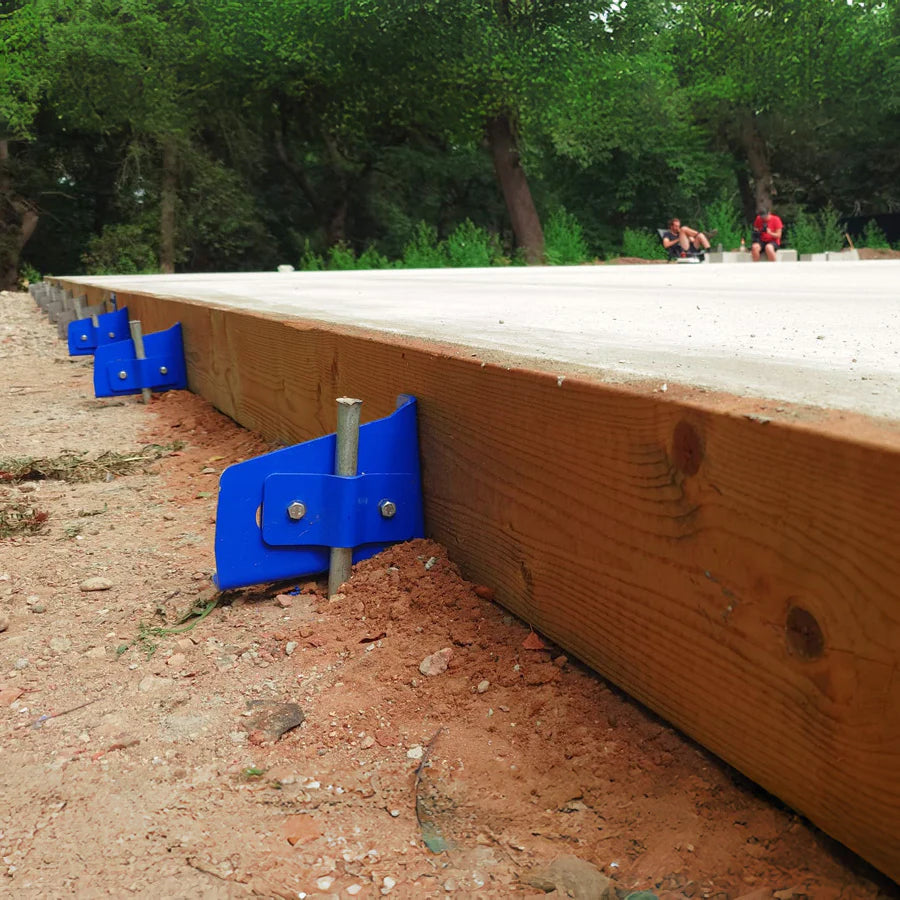

- Creating straight shutter edges for concrete slabs and pads
- Ideal for shed bases, farm tracks, driveways, roadways, and yard pours
- Allows you to square and secure timber boards quickly, even on uneven ground
- Works with both 6-inch and 8-inch timbers (150mm and 200mm)

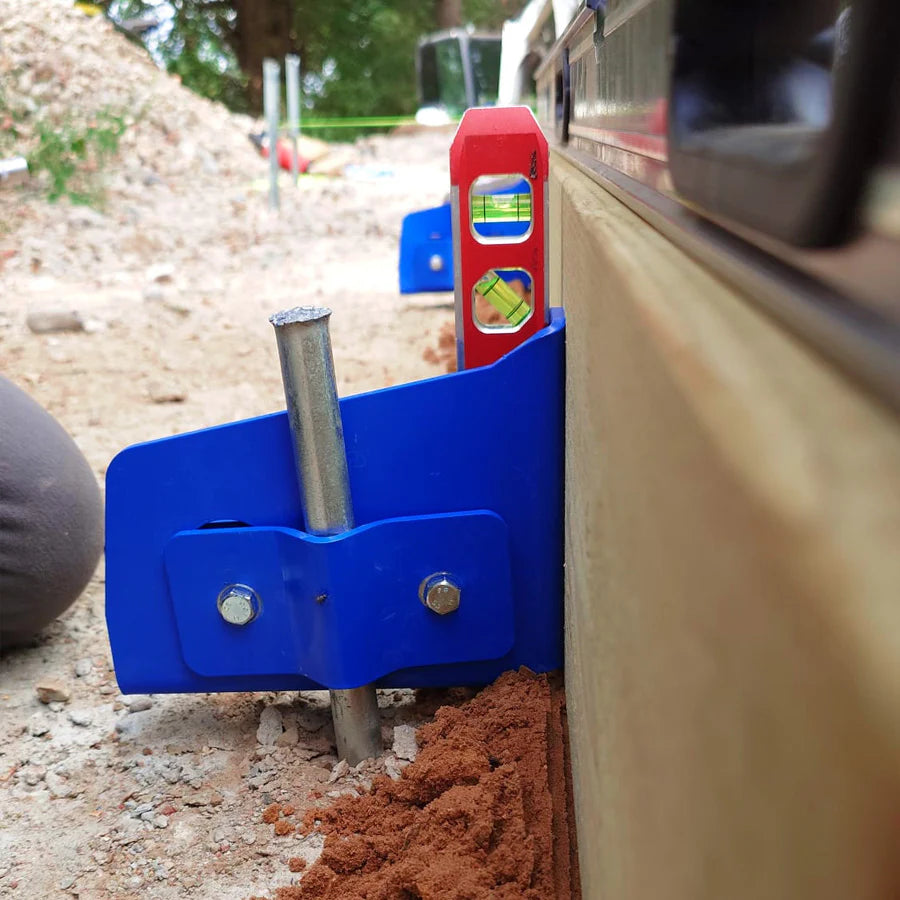

- Helps maintain level shuttering when pins strike stones or go in on an angle
What size is it?
-
Bracket:
-
Width: 160mm
-
Depth: 85mm
-
Height: 70mm
-
Pin:
-
Length: 450mm
-
Diameter: 20mm
-
Fixings included:
- 2 x M8 x 30mm bolts
- 1 x Galvanised 20mm pin
What is it made of?

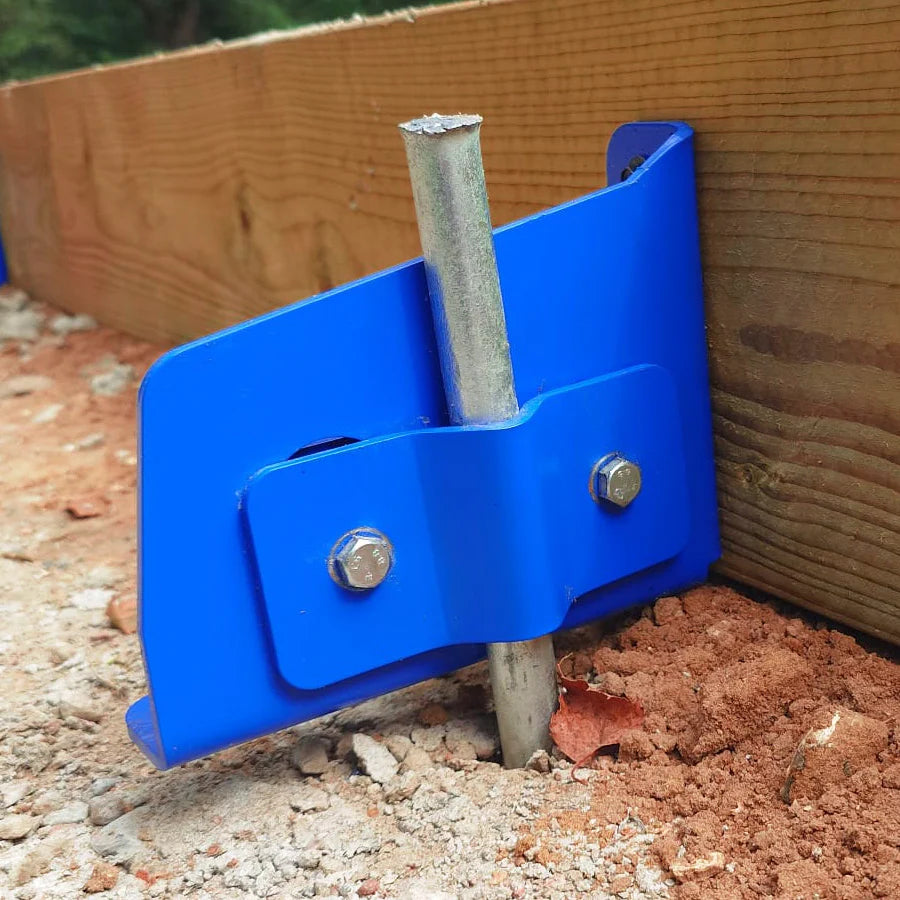

- Each bracket is made from 5mm heavy-duty British steel, and comes in a bare or blue powder-coated finish.
- The included 20mm pin is hot-dip galvanised for added rust resistance. This robust design is built to handle repeated use on demanding job sites.
Why should you buy it?
-
Locks shutters solid – 3-part bracket design holds formwork tight and level
-
Fixes to timber – Three rear holes allow quick screw attachment
-
Anti-pull design – Galvanised 20mm pin holds the bracket firmly in the ground
-

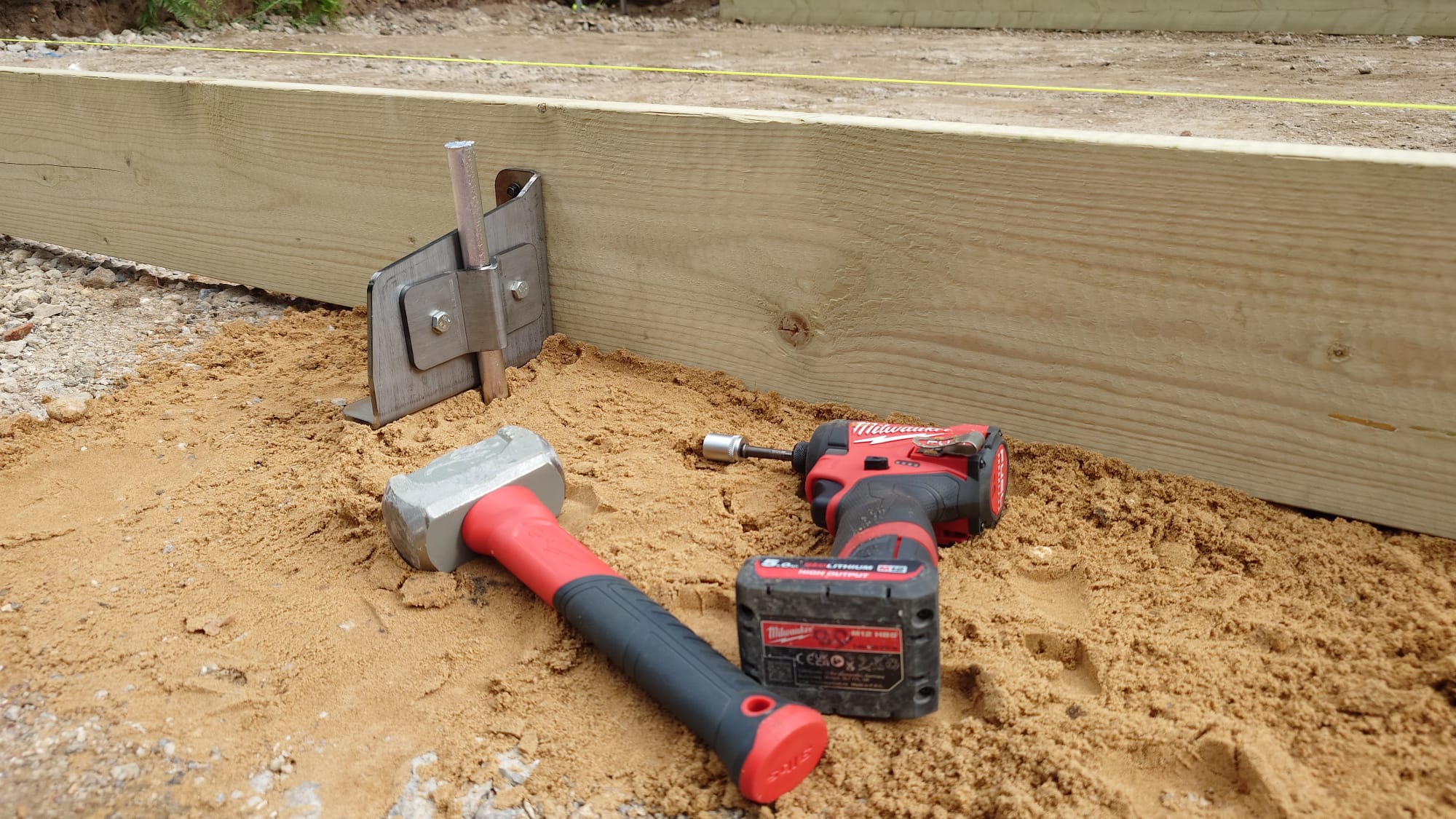

Fast setup – Use with a 13mm impact gun to lock and go
-
Built to last – Reusable on multiple pours, just rinse clean after use
-
Made in the UK – Manufactured in-house for quality and reliability
